Thuis /Producten/Inverter Lasser Generator/MIG 270 Machine Repair Shops, NBC 270DS MIG/TIG/MMA 3 IN 1, Inverter MIG Welder, Generator Friendly

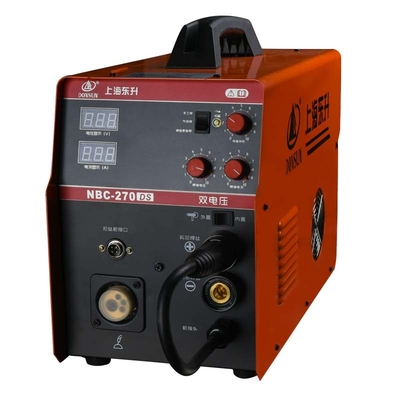

MIG 270 Machine Repair Shops, NBC 270DS MIG/TIG/MMA 3 IN 1, Inverter MIG Welder, Generator Friendly

1 Set
MOQ
MIG 270 Machine Repair Shops, NBC 270DS MIG/TIG/MMA 3 IN 1, Inverter MIG Welder, Generator Friendly
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Material / Metal Processed: Carbon steel
Rated Input Voltage: 220380 V
Wire Melting Type: Short Circuit Transfer
Max. Load Power Capacity: 44 kVA
Rated Output Current (MIG): 270 A
Rated Output Voltage (MIG): 27 V
Rated Duty Cycle @40°C (MIG): 60%
Wire Feeding Speed: 18 m/min
Condition: New
Weight (KG): 15 KG
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Machinery Repair Shops, Farms, Home Use, Retail, Construction works
Machinery Test Report: Provided
Video outgoing-inspection: Provided
After-sales Service Provided: Online support
Showroom Location: None
Marketing Type: New Product 2020
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: welding machine by Standard export cartons with plastic foam
Productomschrijving

Arc Stability
Waveform control,for added stability of the arc,even at low current.
Digital display
Variable amperage control with digital meter,for a simultaneous welding current and tension display.
Protections
Equipped with temperature, voltage and current sensors for high protection.

Suitable for 5KG/15KG wire, flux cored and solid wire.

Model/Parameters
NBC 270DS
Efficiency
≥85%
power supply voltage(V)
1~220/380±10%
Net Weight(Kg)
15
Fre.(HZ)
50/60
Dimensions(mm)
511x213x400
Rated Input Power(KW)
MIG
5.9
TIG
4.3
MMA
6.3
Welding Voltage Range(V)
13.5~27
Rated input current(A)
42
31
44
Duty Cycle(40℃ 10Min)
40% 250A
60% 185A
100% 160A
power factor
0.75
No Load Voltage(V)
63
Insulation Class
H
Welding Current Range(A)
40~270
10~270
10~270
Protection Class
IP23
Wire Diameter(mm)Fe:
06./0.8/0.9/1.0 Ss:0.8/0.9/1.0 Flux-Cored:0.6/0.8/0.9/1.0
Cooling
A
MIG ACCESSORIES

1, MIG torch with 5m cable.

2, Electrode holder with 3m cable.

3, Earth clamp with 3m cable.
